43-inch model
Q8G-43 Digital Signage
A compact 4K signage platform for retail counters, lifts, meeting rooms and close-view brand communication.
4KResolution
500cd/m²
9.6mm bezel
10.6kg net
Q8G Series tempered glass digital signage.
A close-to-wall 4K Android display platform with 9.6 mm equal narrow bezel, tempered glass front and flexible portrait or landscape installation.
43" / 55"two commercial digital signage sizes with a common Android platform
55-inch model
Q8G-55 Digital Signage
A larger 4K display for retail windows, lobbies, restaurants and corporate communication where visual scale matters.
4KResolution
500cd/m²
9.6mm bezel
16kg net
Model comparison
One platform, two screen sizes.
The specifications below are based on the supplied Q8G tempered glass parameter workbook. Confirm target-market certification and custom options before ordering.
| Specification | 43Q8G | 55Q8G |
|---|---|---|
| Effective display area | 941.2 × 529.4 mm | 1209.6 × 680.4 mm |
| Resolution / aspect | 3840 × 2160 / 16:9 | 3840 × 2160 / 16:9 |
| Brightness / contrast | 500 cd/m² / ≥1000:1 | 500 cd/m² / ≥1000:1 |
| Colours / backlight | 16.7 M / direct-lit OD28 | 16.7 M / direct-lit OD28 |
| Viewing angle | 178° (CR ≥ 10) | 178° (CR ≥ 10) |
| Power consumption | ≤100 W | ≤150 W |
| Standby / service life | ≤0.5 W / 30,000 h | ≤0.5 W / 30,000 h |
| Unit dimensions | 964.6 × 553.6 × 82.7 mm | 1233.4 × 705.5 × 82.7 mm |
| Carton dimensions | 1040.5 × 652.5 × 150 mm | 1309 × 803.5 × 150 mm |
| Net / gross weight | 10.6 kg / 13 kg | 16 kg / 19.5 kg |
| Operating environment | 0°C–50°C; 10%–80% RH | 0°C–50°C; 10%–80% RH |
| Storage environment | -20°C–60°C; 10%–90% RH | -20°C–60°C; 10%–90% RH |
| Ports | USB 3.0 host + USB 2.0 OTG | USB 3.0 host + USB 2.0 OTG |
| Network | RJ45; Wi-Fi 6; Bluetooth 5.0 | RJ45; Wi-Fi 6; Bluetooth 5.0 |
| CPU / GPU | RK3566 / Mali-G52 | RK3566 / Mali-G52 |
| Memory / storage | 2 GB RAM / 32 GB flash | 2 GB RAM / 32 GB flash |
| Operating system | Android 11 | Android 11 |
| Image rotation | 0° / 90° / 180° / 270° | 0° / 90° / 180° / 270° |
| Included accessories | Remote, manual, power cord, wall bracket | Remote, manual, power cord, wall bracket |
Design references

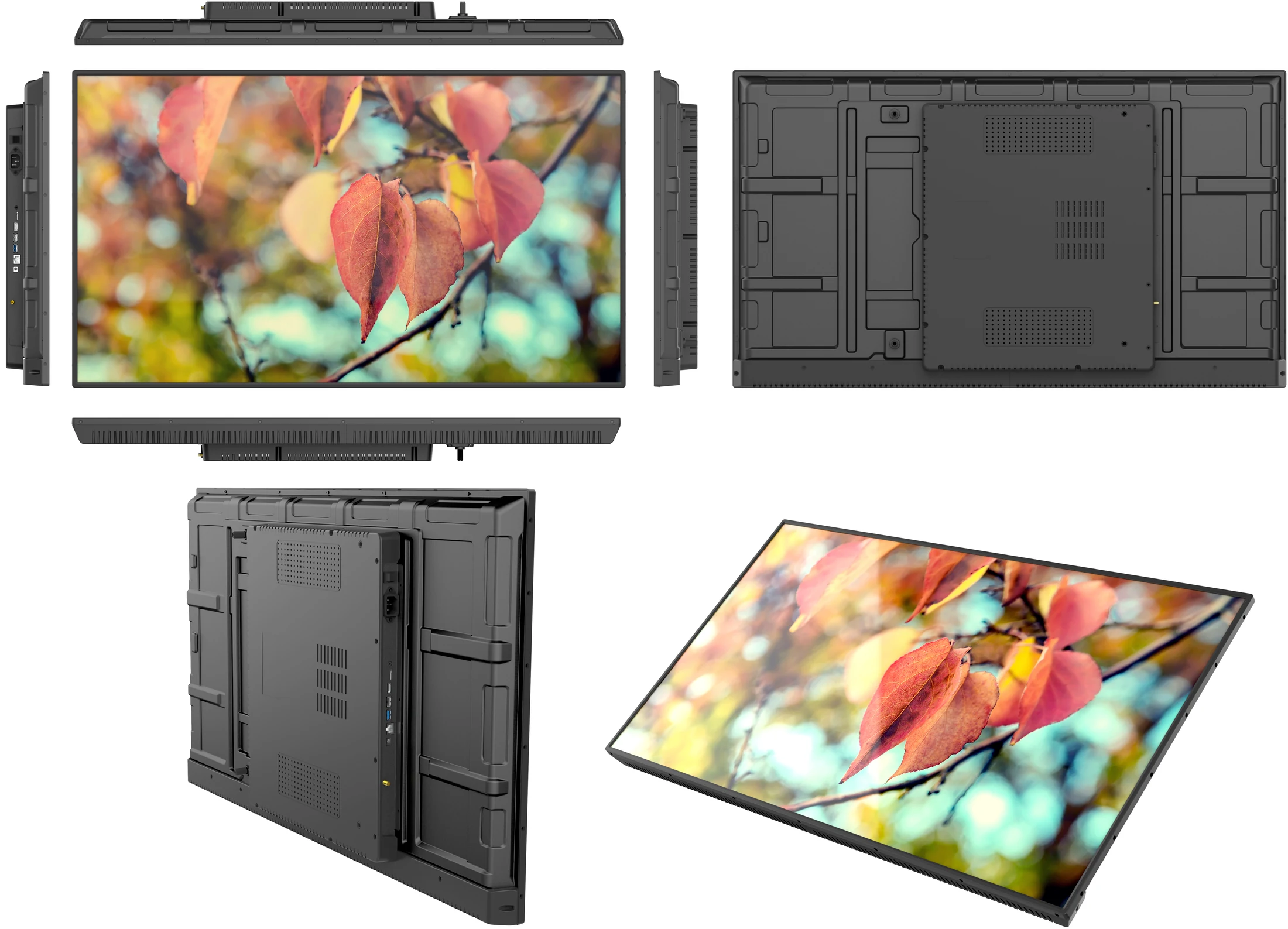

43Q8G drawing43Q8G reference views.
Use the dimension drawing for exact mounting and installation planning.
Design references

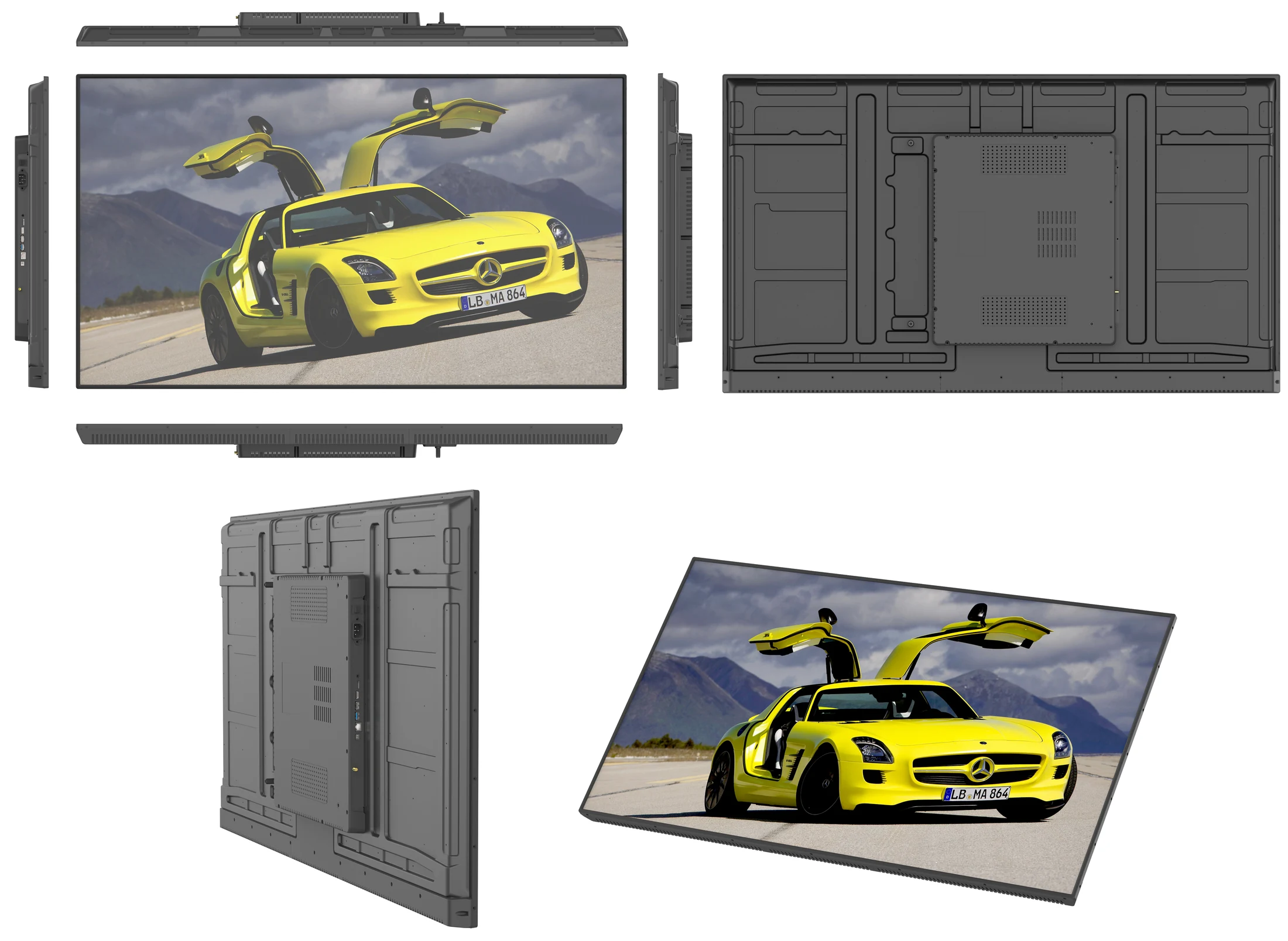

55Q8G drawing55Q8G reference views.
A larger display area with the same slim 82.7 mm chassis depth.
Downloads
Q8G technical documents.
Open the drawings for installation planning or download the supplied specification workbook.
Q8G project support
Ready to specify 43Q8G or 55Q8G?
Send your quantity, destination market, installation orientation and software requirements. We will confirm lead time, packaging and custom options.
